Slide 4 of 17
Notes:

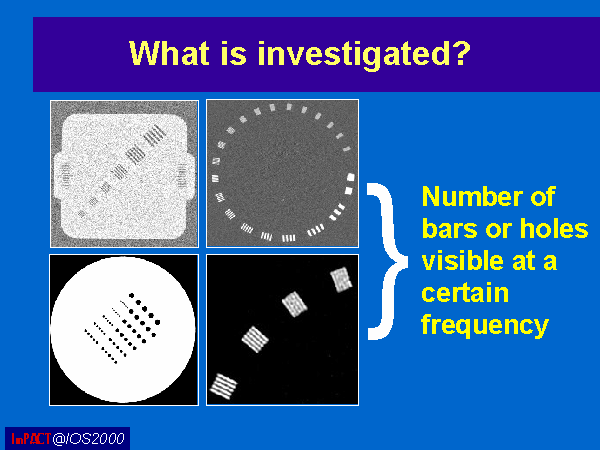

With all of these test objects the quantity investigated is the number of holes or bars visible over a period of time.
The three phantoms are pictured again, along with the type of image that we would normally view from the CATPHAN.
This image was reconstructed at the smallest possible FOV, over the position where the bars were found to be irresolvable on an image of the whole phantom.
